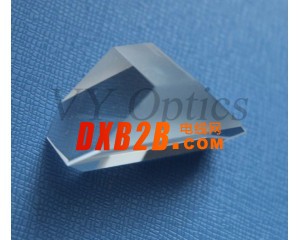

amici roof prism

点击图片查看原图

品牌：	VY
单价：	0.10元/piece
起订：	100 piece
供货总量：	100000 piece
发货期限：	自买家付款之日起 3 天内发货
所在地：	吉林长春市
有效期至：	长期有效
最后更新：	2015-09-24 21:34
浏览次数：	676

公司基本资料信息

产品详细说明

Amici prism also named as right angle roof prism, instead of the inclined surface with two mutually perpendicular reflecting surfaces of a rectangular prism. Role roof surface is increased without changing the optical axis direction of the first reflection, so that the total reflection prism bees the odd number even. Cartesian beam roof prism has turned 90 degrees, and as just as nature, so this prism is widely used in telescope systems, imaging systems, observation systems and ranging systems.

The general tolerance specifications above provide a guideline regarding manufacturing capabilities for optics ranging in size from 3-76.2mm. The manufacturing limits are not absolute;tighter tolerances may be possible. Part specific tolerances may vary depending on ponent size, shape, and/or material.

Specification of our amici prism as follow:

*Material BK7 or UV grade fused silica

*Dimension Tolerances +/-0.1mm

*Clear Aperture >80%

*Surface Quality:60/40 Scratch/Dig

*Surface Flatness lambda/4 at 633nm

*Angle Tolerance 60 degree+/-3 minutes

*Chamfer 0.3mm+/-0.1mm m

*Coatings Optional
