热缩封帽主要用在广泛应用于光电缆等行业，在电缆两头暴露处用热缩封帽套住，然后加热收缩就可以完成安装了。从表面看电缆封帽要求可能不是太高，但从用途来说，我们要保证电缆封帽的密封性，但电缆封帽的密封性由内壁涂的热熔胶决定，假如内壁的热熔胶性能不过关，产生缝隙，那就起不到密封保护作用
电缆封帽规格型号：
|
型号 |
供应尺寸（mm） (mm)
|
回缩后尺寸（mm） (mm)
StandardLength (m)
|
电缆直径 （mm）
|
|
|||||||
|
D (最小值) |
A (±10%) |
D (最大值) |
L (±10%) |
Dw (±5%)
|
|
||||||
|
标准长度封帽 |
|
||||||||||
|
BH-SEC 105 12/4 |
12 |
15 |
4 |
40 |
2.6 |
4-10 |
|
||||
|
BH-SEC 110 14/5 |
14 |
18 |
5 |
45 |
2.2 |
5-12 |
|
||||
|
BH-SEC 115 20/6 |
20 |
25 |
6 |
55 |
2.8 |
6-16 |
|
||||
|
BH-SEC 120 25/8.5 |
25 |
30 |
8.5 |
68 |
2.8 |
10-20 |
|
||||
|
BH-SEC 130 35/16 |
35 |
35 |
16 |
83 |
3.3 |
17-30 |
|
||||
|
BH-SEC 135 40/16 |
40 |
35 |
16 |
83 |
3.3 |
18-32 |
|
||||
|
BH-SEC 140 55/26 |
55 |
50 |
26 |
103 |
3.5 |
28-48 |
|
||||
|
BH-SEC 150 75/36 |
75 |
55 |
36 |
120 |
4.0 |
45-68 |
|
||||
|
BH-SEC 160 100/52 |
100 |
70 |
52 |
140 |
4.0 |
55-90 |
|
||||
|
BH-SEC 170 120/60 |
120 |
70 |
60 |
150 |
4.0 |
65-110 |
|
||||
|
BH-SEC 180 145/60 |
145 |
70 |
60 |
150 |
4.0 |
70-130 |
|
||||
|
BH-SEC 190 160/82 |
160 |
70 |
80 |
150 |
4.2 22 |
90-150 |
|
||||
|
BH-SEC 200 200/90 |
200 |
90.0 |
70 |
160 |
4.2 |
100-180 |
|
||||
|
加长封帽 |
|
||||||||||
|
BH-SEC 110L 14/5 |
14 |
30 |
5 |
55 |
2.2 |
5-12 |
|||||
|
BH-SEC 135L 40/15 |
40 |
40 |
15 |
90 |
3.3 |
18-34 |
|||||
|
BH-SEC 140L 55/23 |
55 |
70 |
23 |
140 |
3.8 |
25-48 |
|||||
|
BH-SEC 145L 62/23 |
62 |
70 |
23 |
140 |
3.8 |
25-55 |
|||||
|
BH-SEC 150L 75/36 |
75 |
70 |
36 |
150 |
4.0 |
40-68 |
|||||
|
BH-SEC 150XL 75/36 |
75 |
70 |
36 |
170 |
4.2 |
45-68 |
|||||
|
BH-SEC 160L 100/47 |
100 |
65 |
47 |
155 |
4.0 |
50-90 |
|||||
|

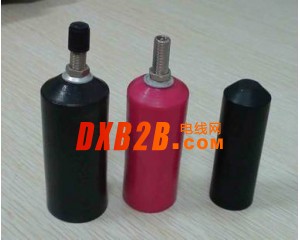

可供应带气嘴端帽 |
|
||||||||||
