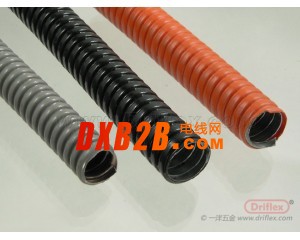

波浪型防水金属软管
镀锌铁皮制成,表面PVC被覆.
轻质结构,绝佳弯曲性能及防水性.
用于大量生产型设备和工具机械,或任何狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
|
Part No
|
Nominal Size
ISO (mm)
|
Nominal Size
US (inches)
|
I.D.
(mm)
|
O.D.
(mm)
|
Min. Bend
Radius (mm)
|
Length
(M/coil)
|
|---|---|---|---|---|---|---|
|
VJ-10
|
16
|
3/8"
|
12.3 - 12.8
|
16.7 - 17.2
|
50
|
50
|
|
VJ-11
|
20
|
1/2"
|
15.8 - 16.3
|
20.2 - 20.7
|
65
|
50
|
|
VJ-12
|
25
|
3/4"
|
20.7 - 21.2
|
25.5 - 26.1
|
75
|
50
|
|
VJ-13
|
32
|
1"
|
26.0 - 26.6
|
31.6 - 32.2
|
100
|
50
|
|
VJ-14
|
40
|
1-1/4"
|
34.7 - 35.4
|
40.8 - 41.5
|
125
|
30
|
|
VJ-15
|
50
|
1-1/2"
|
40.0 - 40.6
|
46.6 - 47.2
|
150
|
30
|
|
VJ-16
|
63
|
2"
|
51.3 - 51.9
|
58.1 - 58.7
|
175
|
20
|
|
VJ-17
|
75
|
2-1/2"
|
63.0 - 63.6
|
71.8 - 72.4
|
200
|
10
|
|
VJ-18
|
90
|
3"
|
78.0 - 78.7
|
87.2 - 87.9
|
225
|
10
|
|
VJ-19
|
100
|
4"
|
101.6 - 102.6
|
111.2 - 112.3
|
275
|
5
|
