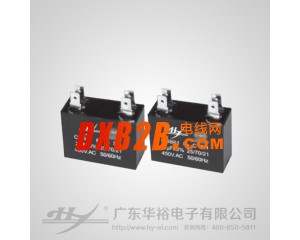

点击图片查看原图
特点及用途/ Characteristics and use
该电容器损耗低，内部温升小，绝缘电阻高，容量稳定性好，自愈性优异，塑料外壳，环氧树脂灌封，安全可靠，适用于频率为50Hz（ 60Hz）的交流电源供电的单相电动机的起动和运转。
The capacitor is very smaIl dissipation factor, small inherent temperature rise, high reliability due to plastic case encloseuer and flame retardant epoxy resin filling and sealing suitable for starting and operation of 50HZ（60Hz）AC single-phase motor.
技术特性/Specification
|
引用标准 Reference Standard |
Reference Standard |
GB3667-2005 |
|
|
气候类别Climatic category |
Climatic category |
40/070/21 |
|
|
耐电压 Voltage proof |
引线间Between lead |
1.5VR (IOS) |
2.0VR (IOS) |
|
极壳间Between case terminals |
2000VAC (IOS) |
2000VAC (IOS) |
|
|
电容量偏差Capacitance Tolerance |
Capacitance Tolerance |
±5%(J) ±10%(K) |
|
|
损耗角正切 Dissipation factor |
Dissipation factor |
tg8≤0.004(100HZ) |
|
|
绝缘电阻 Insulation resistance |
RC≥3000MΩμF（2min) |
||
此产品关键字：
交流启动电容、风扇电容、洗衣机电容、空调电容
