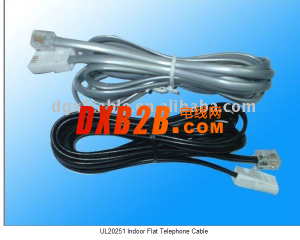

UL 20251 telephone cord
1. standard or solid or bare copper conductor or tinsel conductor
2. two to ten conductor only
3. color--coded polypropylene(PP) insulation
4.cores are laid parallel of forming a flat
5.PVC jacket
6.rated temperature:80C rated voltage : 150 volt
7.passes UL-VW-1 vertical
application:
for internal cable of electronic equipment or as handest wire or telephone cord for subscribe sets
|
Conductor |
Insulation Thickness |
No.Of core |
Jacket Thickness |
Overall Diameter |
|
|
Name |
No./Diameter |
||||
|
AWG |
No./mm |
mm |
No. |
mm |
mm |
|
28 |
7/0.127 |
0.28 |
2 |
0.68x1.50 |
2.6x4.9 |
|
4 |
0.68x0.58 |
2.6x4.9 |
|||
|
6 |
0.58x0.58 |
2.4x6.8 |
|||
|
8 |
0.68x0.50 |
2.6x8.6 |
|||
|
10 |
0.68x0.60 |
2.6x10.6 |
|||
|
26 |
7/0.16 |
0.23 |
2 |
0.68x1.50 |
2.6x4.9 |
|
4 |
0.68x0.58 |
2.6x4.9 |
|||
|
6 |
0.58x0.58 |
2.4x6.8 |
|||
|
8 |
0.68x0.50 |
2.6x8.6 |
|||
|
10 |
0.68x0.60 |
2.6x10.6 |
|||
|
24 |
7/0.203 |
0.17 |
2 |
0.68x1.50 |
2.6x4.9 |
|
4 |
0.68x0.58 |
2.6x4.9 |
|||
|
6 |
0.58x0.58 |
2.4x6.8 |
|||
|
8 |
0.68x0.50 |
2.6x8.6 |
|||
|
10 |
0.68x0.60 |
2.6x10.6 |
|||
|
32 |
TINSEL |
0.19 |
2 |
0.68x1.50 |
2.6x4.9 |
|
4 |
0.68x0.58 |
2.6x4.9 |
|||
|
6 |
0.58x0.58 |
2.4x6.8 |
|||
|
8 |
0.68x0.50 |
2.6x8.6 |
|||
|
*26 |
7/0.16 |
0.23 |
4 |
0.85 |
4.00 |
|
6 |
0.55 |
4.00 |
|||
|
8 |
0.60 |
4.30 |
|||
|
*24 |
7/0.203 |
0.17 |
4 |
0.85 |
4.00 |
|
6 |
0.55 |
4.00 |
|||
|
8 |
0.60 |
4.30 |
|||
|
10 |
0.70 |
4.80 |
|||
|
*32 |
TINSEL |
0.19 |
4 |
0.85 |
4.00 |
|
6 |
0.55 |
4.00 |
|||
|
8 |
0.60 |
4.30 |
|||
|
